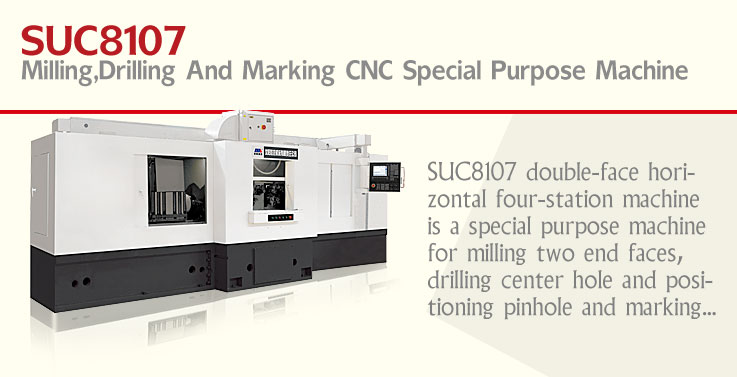

SUC8107
double-face horizontal four-station machine is a special
purpose machine for milling two end faces, drilling
center hole and positioning pinhole and marking, and
also a parallel moving four-station machine applied to
milling two end faces of camshafts, drilling center
holes at two ends, drilling and reaming positioning
pinholes at one end, and marking. Work-pieces are loaded
manually then the following actions of positioning,
clamping, milling end face, drilling center hole,
drilling and reaming positioning pinhole etc. are to be
automatically performed by the machine. After machining
the positioning pinhole of the work-piece, the automatic
sliding door on the top of the machine guard will open,
the manipulator will grasp the work-piece and move
horizontally to the left side of the machine, put on the
marking table, clamp the work-piece and mark on it.
After marking, the work-piece will automatically drop
into the hopper. So far, the processing of the
work-piece has been finished . The machining time is
about 3 minutes. This machine is suitable for machining
various camshafts and optical axes with work-piece
length range from 450mm to 1000mm, as well as components
need to finish the similar processes as mentioned above.
It adopts integrated cast iron bed to get good rigidity,
high machining accuracy and high automaticity, and also
features lower labor intensity, convenient and
user-friendly operation and adjustment, as well as
suitable for large volume production.
|
